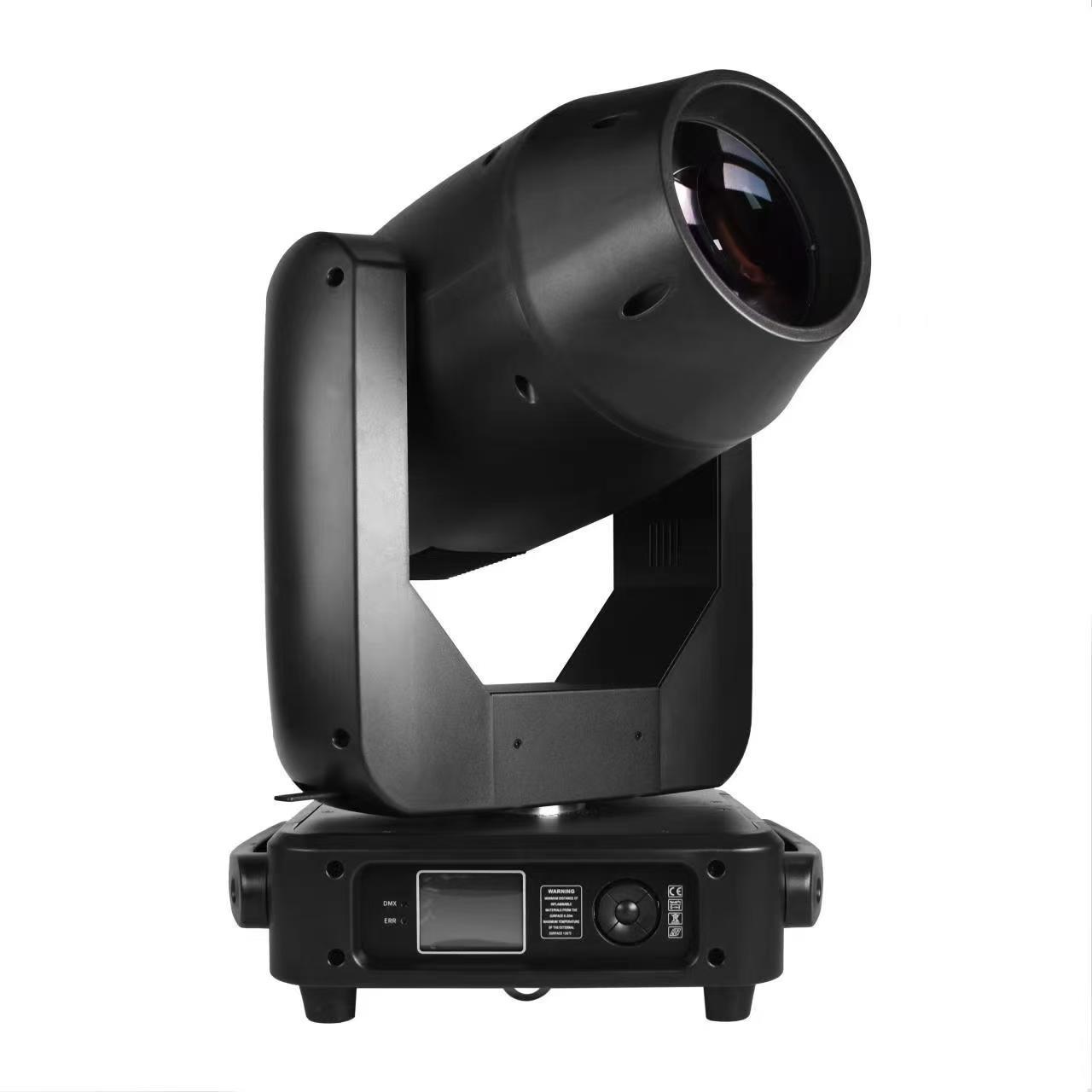

| Product name | BSW 380 CTO | |
| model NO;. | FR-380T | |
| Overview: | Fixed gobo/ rotation gobo/ animation gobo/ CTO/OSRAM bulb 371W / color wheel and very smooth in movement and with a beam of 2.5degree and zoom to 40 degree so make it excellent in use for any of your professional use in big stage. Two prisms make its more options in shoot out any of effect that you want . | |
| Feature: | 1. Fast response when pan/tilt by 3 phase motors 2. CTO 2500-8000k 3. fixed gobo and self rotation gobo( glass gobo replacement option) 4. Intelligent fan control with heat change/Lamp protection 5. Always safe light from RDM intelligent monitoring system/fault detection |
|
| Parameter | Voltage | 100V ~240V/50-60Hz |
| Power consumption | 600W | |
| Lamp phoenix | 371W lamp(original osram) | |
| DMX512 | 23 | |
| Master/slave | ✓ | |
| Auto | ✓ | |
| Gobo wheel | 3wheel totoal-12 static gobos+ open/ 7self-rotation glass gobo/animation gobo | |
| Color wheel | 13+white with liner CTO | |
| Effect wheel | 2 prisms(8 facet+6 line facet)& frost | |
| Shutter | 1~15t/s | |
| Dimmer | 0-100% by 2 shutters | |
| Focus | ✓ | |
| Frost | ✓ | |
| Zoom | 3-40° | |
| machine body | hight temp resistance Nylon plastic | |
| Level of Protection | IP20 | |
| Stock | Clean and dry place | |
| Running temp. | -10°~ 55° | |
| machine size | 270mm X 370mm X 623mm | |
| machine weight | 21kg | |
DIMENSIONS

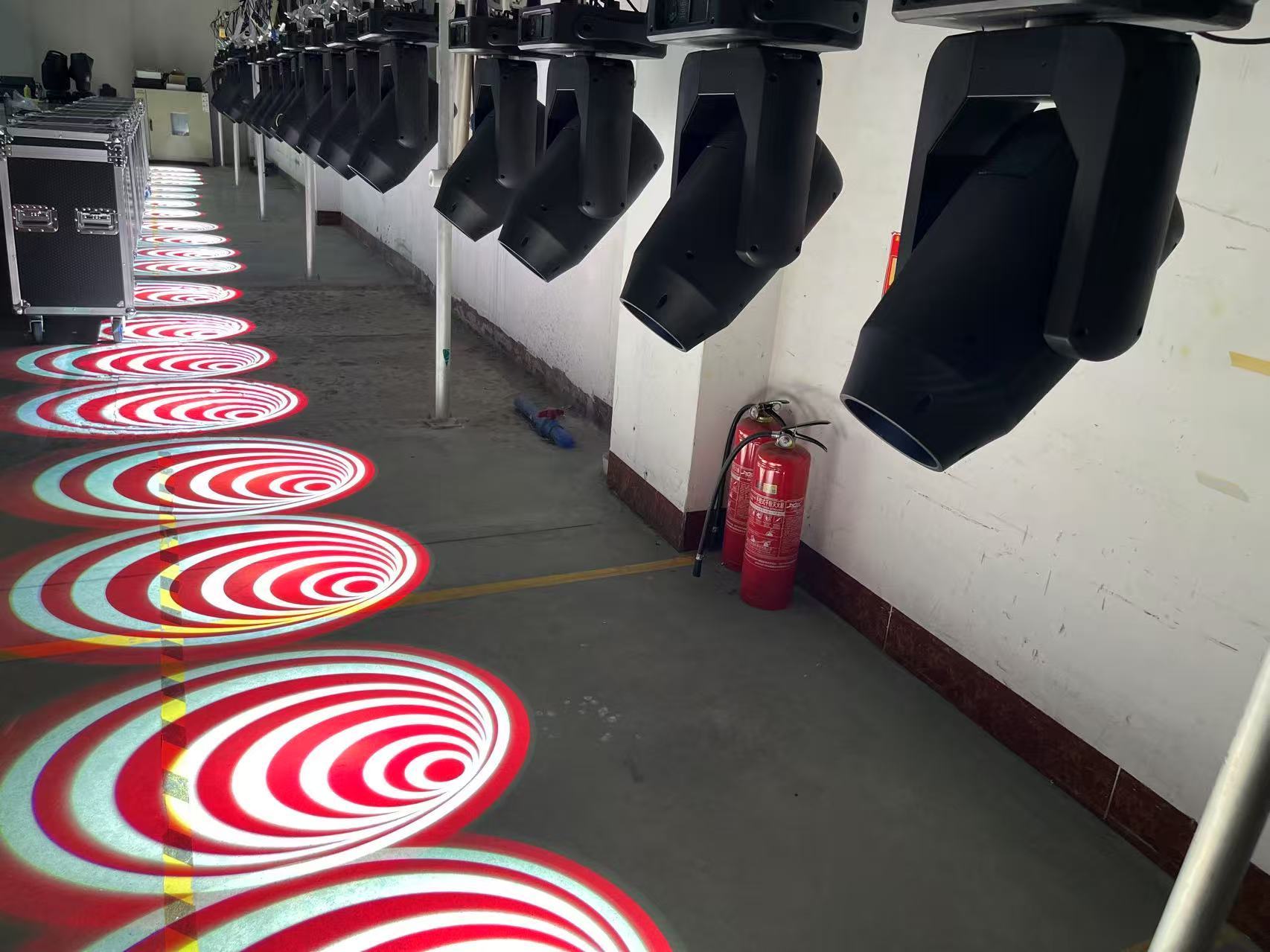

EFFECT
VIDEO
