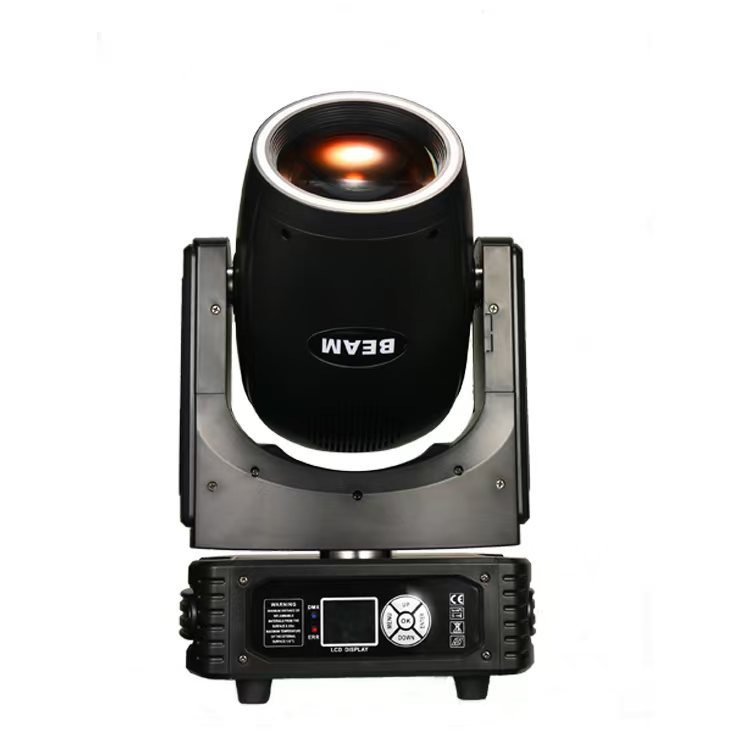

| Product name | MIMINI 230 | |
| model NO;. | FR-230MINI | |
| Overview: | some installation do need some small size of moving head so we suggest you to conside this mIni size BEAM 230. | |
| Feature: | 1. Fast response when pan/tilt 2. 2 prisms/rainbow 3. 17 fixed gobos&open /13colors & blank 4. 200000LUX @ 10 meters 5. 135mm Lens |
|
| Parameter | Voltage | 100V ~240V/50-60Hz |
| Power consumption | 400W | |
| Lamp phoenix | 230W LAMP +RGB Ring strip | |
| DMX512 | 16/20 | |
| Master/slave | ✓ | |
| Auto | ✓ | |
| Gobo wheel | fixed gobo-17+open | |
| Color wheel | 13+white | |
| Effect wheel | 2 prism(8 prisms and 8-8-8 prisms & frost &self rotation prisms/rainbow | |
| Shutter | 1~13t/s | |
| Dimmer | 0-100% | |
| Focus | ✓ | |
| frost | ✓ | |
| rainbow | rainbow effect | |
| Beam angle | less than 2° | |
| Level of Protection | IP66 | |
| Stock | Clean and dry place | |
| Running temp. | -10°~ 55° | |
| machine size | 2600mm X 2200mm X 470mm | |
| machine weight | 12kg | |
DIMENSIONS
EFFECT
VIDEO
